Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN

  • 1
  • 2

Brand Name : HANYU

Model Number : TY90

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD50,000.00-53,000.00/Set

Payment Terms : L/C, T/T

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Overhead Transmission Hydraulic Laying Puller

Total weight : 4680kg

Max intermittent pull : 90kN

Max continuous pull : 80kN

Max speed : 5km/h

Cooling system : water

Contact Now

Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN

TY90 Hydraulic Puller

  • This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
  • Besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Performance
  1. Max continuous pull: 80kN
  2. Max intermittent pull: 90kN
  3. Max speed: 5km/h
  4. Pull at max speed: 40kN
  5. Speed at max pull: 2.5km/h
Characteristics
  1. Total weight: 4680kg
  2. Overall dimension (length*width*height): 4000×2200×2100mm
  3. Max rope diameter: 21mm
  4. Bull-wheel diameter: 540mm
  5. Groove number: 8
  6. Max diameter of rope reel: 1400mm

Main configuration
  1. Engine: Cummins
  2. Tail bracket hoisting motor: American Eton
  3. Hydraulic pump: German Rexroth
  4. Speed reducer: German Rexroth / Italy Bonfiglioli
  5. Hydraulic meter: German WIKA
  6. Operating handle: German Rexroth
  7. Main motor: German Rexroth
Engine
  1. Electrical system: 24V
  2. Diesel: 118kw(158hp)
  3. Cooling system: water

Additional Devices

  • Lighting system for the trailer
  • Extra shaft
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Digital speed and meter counter (extra charge)
  • Trailer for towing at max speed of 15 km/h

Configuration

  • Hydraulic oil cooling system
  • Hydraulic dynamometer with set-point and automatic control of maximum pull
  • Grounding connection point
  • Hydraulic front stabilizer
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic Transmission
  • Closed hydraulic circuit for step less speed variation in both rotating directions.
  • This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN


Product Tags:

Overhead transmission hydraulic puller



Hydraulic laying puller 90kN



Transmission line stringing equipment


Buy cheap Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN product

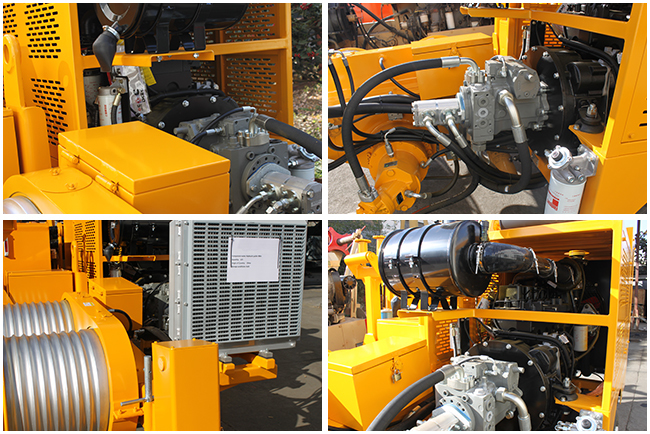

Overhead Transmission Hydraulic Laying Puller Max Intermittent Pull 90kN Images
