Transmission Line Stringing Equipment Pulling Type 2x35KN Electric Cable Tensioner

Name: Transmission Line Stringing Equipment Pulling Type 2x35KN Electric Cable Tensioner
Brand: HANYU
Price: 48 USD

Buy cheap Transmission Line Stringing Equipment Pulling Type 2x35KN Electric Cable Tensioner product

Brand Name : HANYU

Model Number : TY2x35

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD48,500.00-51,000.00/Set

Payment Terms : L/C, T/T

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Hydraulic Electric Cable Tensioner

Max conductor diameter : 40mm

Bull-wheel diameter : 1300mm

Overall dimension (length*width*height) : 4300×2250×2700mm

Max intermittent tension : 2x40kN

Max continuous tension : 2x35kN

Contact Now

Transmission Line Stringing Equipment Pulling Type 2x35KN Electric Cable Tensioner

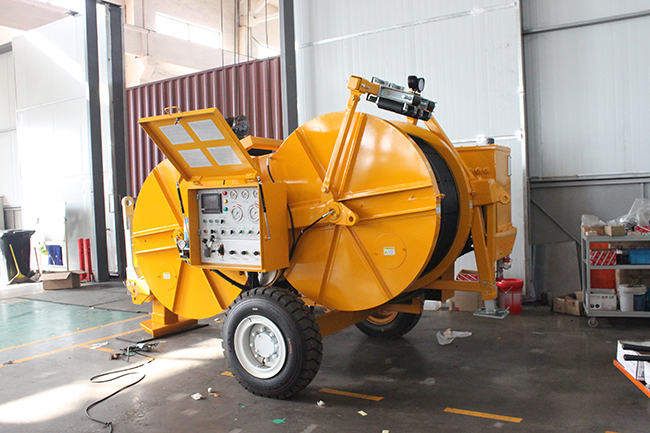

TY2x35 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;

besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

Max continuous tension: 2x35kN
Max intermittent tension: 2x40kN
Max reverse pulling force: 2x30kN
Pull at max speed: 2x20kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Max reverse pulling speed: 5km/h

Main configuration

Engine: Cummins
Main motor: German Rexroth/French Leduc
Hydraulic pump: German Rexroth/Dnish Danfoss
Main hydraulic valves: USA Sun / Italy ATOS
Speed reducer: German Rexroth / Italy Bonfiglioli

Characteristics

Groove number: 2x5
Bull-wheel diameter: 1300mm
Max conductor diameter: 40mm
Overall dimension (length*width*height): 4300×2250×2700mm
Total weight: 4500kg

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Engine

Electrical system: 24V
Diesel: 77kw(103hp)
Cooling system: water

Configuration

Digital speed and meter counter
Hydraulic oil cooling system
Hydraulic dynamometers
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer
2 hydraulic conductor clamps for drum change operations (extra charge)
Air brake system for the trailer (extra charge)
Swivel guide rope roller
